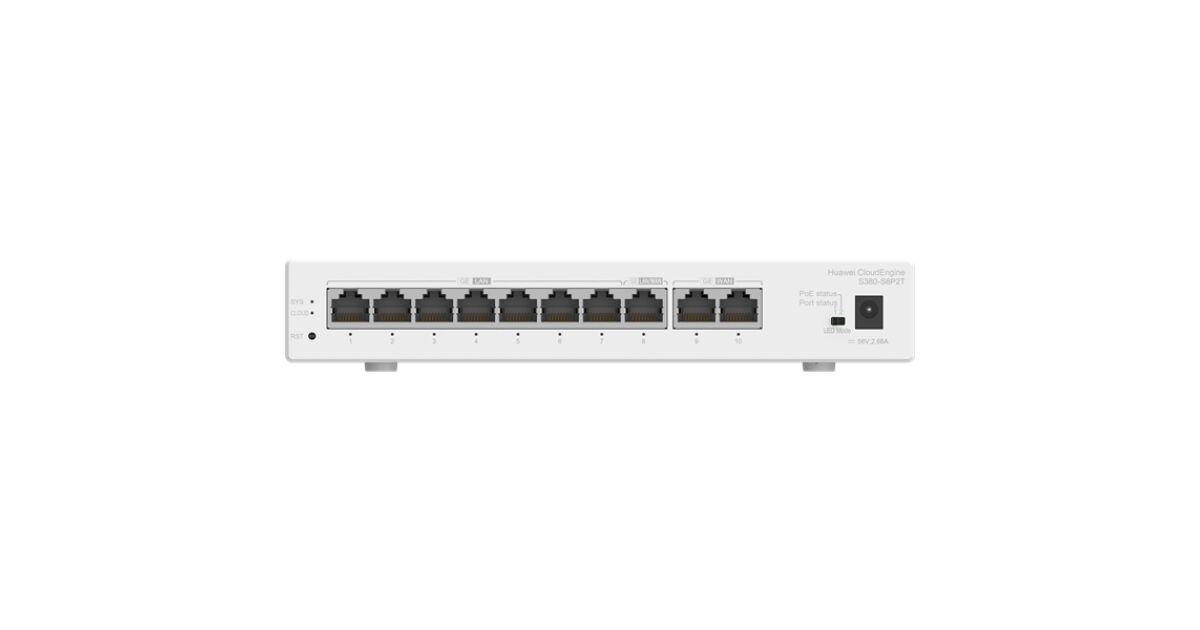

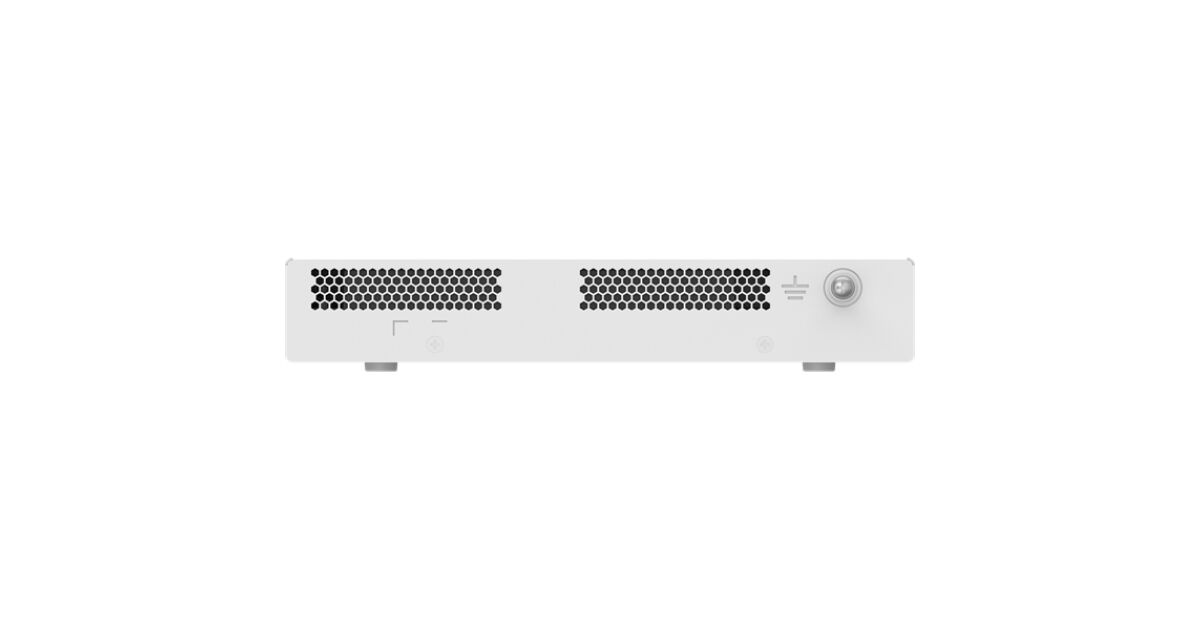

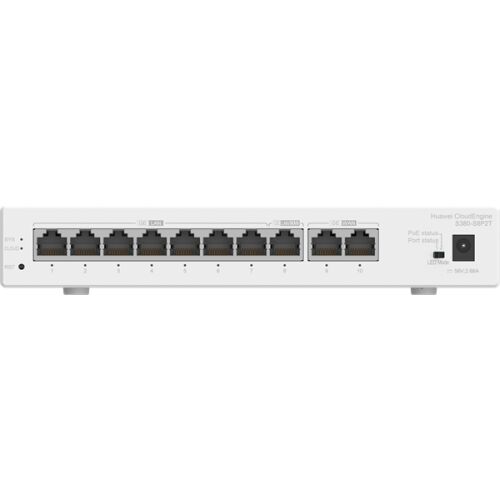

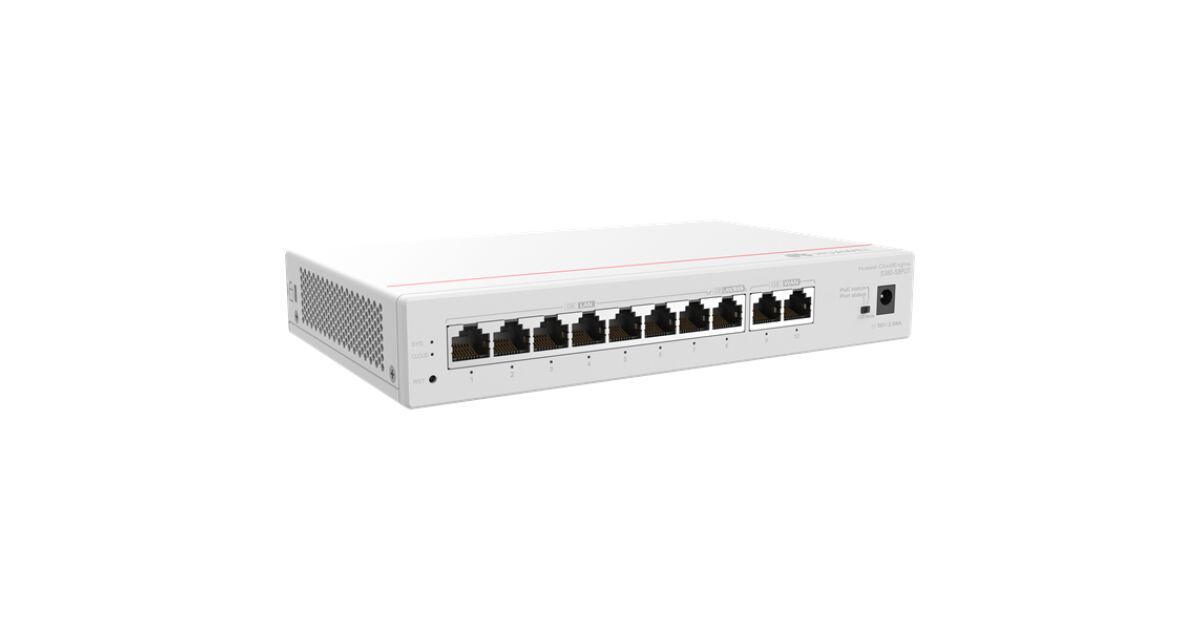

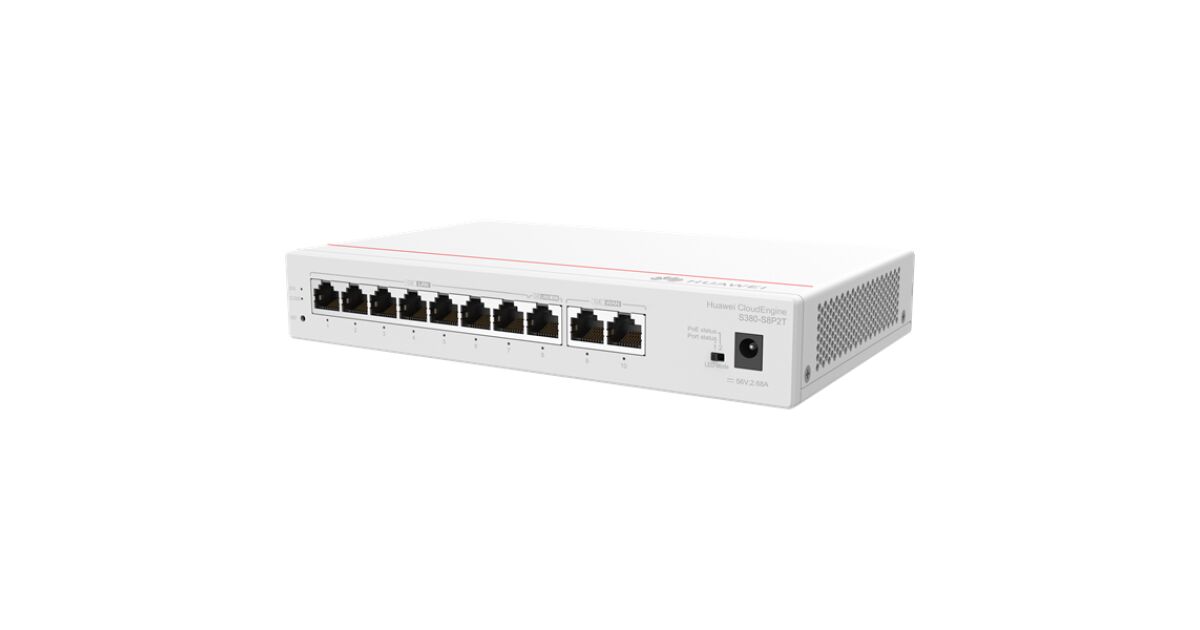

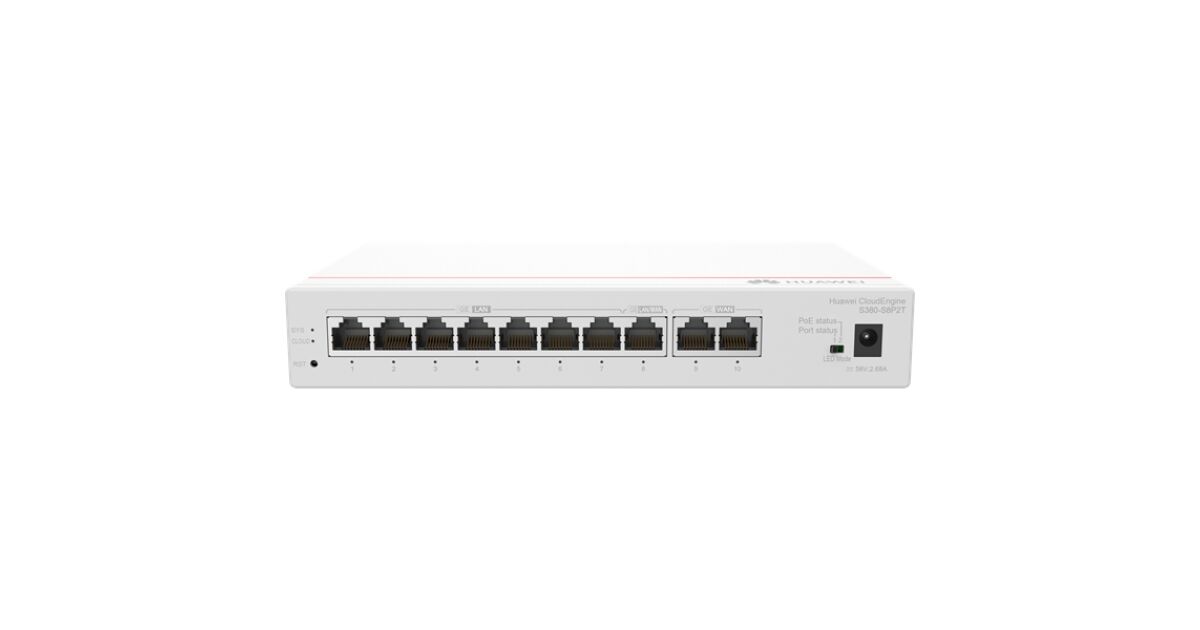

Huawei S380-S8P2T eKit Engine Gateway 2x1000Mbps (WAN) + 8x1000Mbps (124W POE+) Asztali

First supported versionV600R022C10Integrated fixed deviceYDimensions without packaging (H x W x D) [mm(in.)]Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.)Dimensions with packaging (H x W x D) [mm(in.)]150.0 mm x 275.0 mm x 200.0 mm (5.91 in. x 10.83 in. x 7.87 in.)Chassis height [U]0.8Installation typeDesk mounting,Wall mountingWeight without packaging [kg(lb)]1.5 (3.31)Weight with packaging [kg(lb)]1.8 (3.97)Typical power consumption [W]12.4Typical heat dissipation [BTU/hour]42.3Maximum power consumption [W]145.8 W (PoE: 124 W)Maximum heat dissipation [BTU/hour]497.5Static power consumption [W]7.53100% power consumption [W]12.52MTBF [year]65.36MTTR [hour]2Availability>0.99999Noise at normal temperature (acoustic power) [dB(A)]Noise-free (no fans), < 30Noise at high temperature (acoustic power) [dB(A)]Noise-free (no fans), < 30Noise at normal temperature (acoustic pressure) [dB(A)]Noise-free (no fans), < 20Number of card slots0Number of power slots0Number of fans modules0Maximum number of physical ports on the entire device10Maximum number of 100GE ports0Maximum number of 40GE ports0Maximum number of 25GE ports0Maximum number of 10GE ports0Maximum number of 5GE ports0Maximum number of 2.5GE ports0Maximum number of GE ports10Maximum number of FE ports10Dedicated stack portNot supportedRedundant power supplyNot supportedLong-term operating temperature [°C(°F)]0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)Restriction on the operating temperature variation rate [°C(°F)]When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).Storage temperature [°C(°F)]–40°C to +70°C (–40°F to +158°F)Long-term operating relative humidity [RH]5% RH to 95% RH (non-condensing)Long-term operating altitude [m(ft.)]0–5000 m (0–16404 ft.)Storage altitude [m(ft.)]0-5000 m (0-16404 ft.)Power supply modePower adapterRated input voltage [V]Power adapter input: 100–240 V AC; 50/60 Hz Power adapter output: 56 V DCInput voltage range [V]Power adapter input: 90–290 V AC; 47–63 HzMaximum input current [A]2.68 ACPUQuad-core, 800 MHzMemoryDDR4: 512 MBFlash memoryNAND Flash: 512 MBStorage-Console portNot supportedEth Management portLAN portUSBNot supportedHardware real-time power detectionNot supportedDying gaspNot supportedRTCNot supportedRPS inputNot supportedComplete device sleepingNot supportedService port surge protection [kV]Common mode: ±4 kVPower supply surge protection [kV]Power adapter: ±6 kV in differential mode and ±6 kV in common modeIngress protection level (dustproof/waterproof)IP20Types of fansNoneHeat dissipation modeNatural heat dissipationAirflow direction-PoESupportedMaximum PoE power consumption [W]124 WPoE+ power interfaces8PoE++ power interfaces-Full load PoE power consumption 15.4W (802.3af)8Full load PoE power consumption 30W (802.3at)4Full load PoE++ power consumption 60W (802.3bt)-Full load PoE++ power consumption 90W (802.3bt)-CertificationEMC certification Safety certification Manufacturing certification
