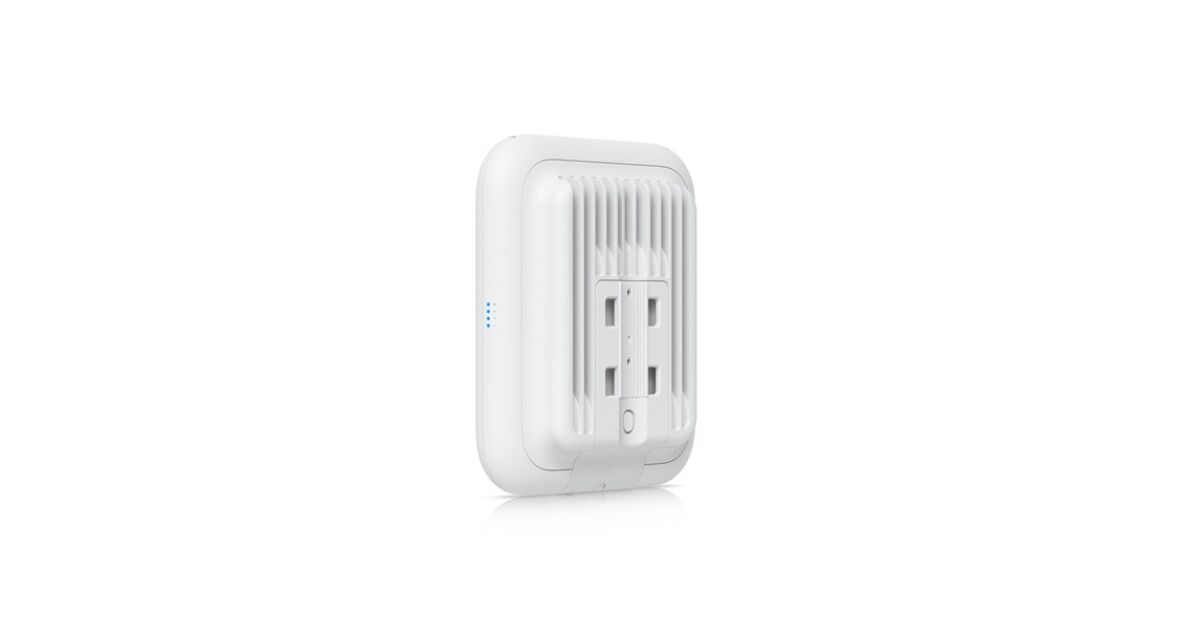

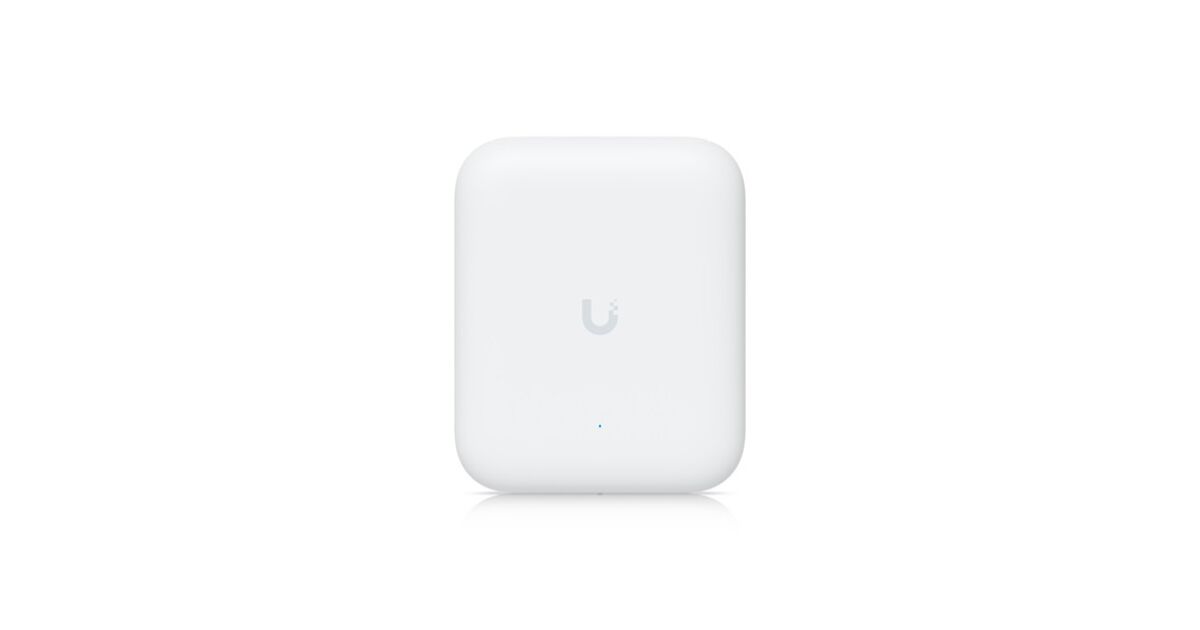

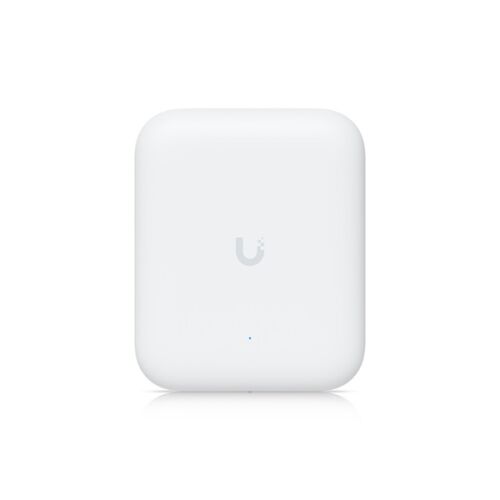

Ubiquiti wireless access point triband 1x2500mbps, 5,3gbps, 2x2 mimo, poe nélkül, falra rögzíthető - u7-outdoor U7-OUTDOOR

Mechanical


Dimensions
170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")


Weight
1.2 kg (2.6 lb)


Enclosure material
UV-stabilized polycarbonate, aluminum alloy


Mount material
Polycarbonate, SGCC steel


Pole mount diameter
25–60 mm (1–2.36") on pipe outer diameter


Wind survivability
74.6 N at 200 km/h (16.8 lbf at 125 mph)


Weatherproofing
IPX6


Hardware


Networking interface

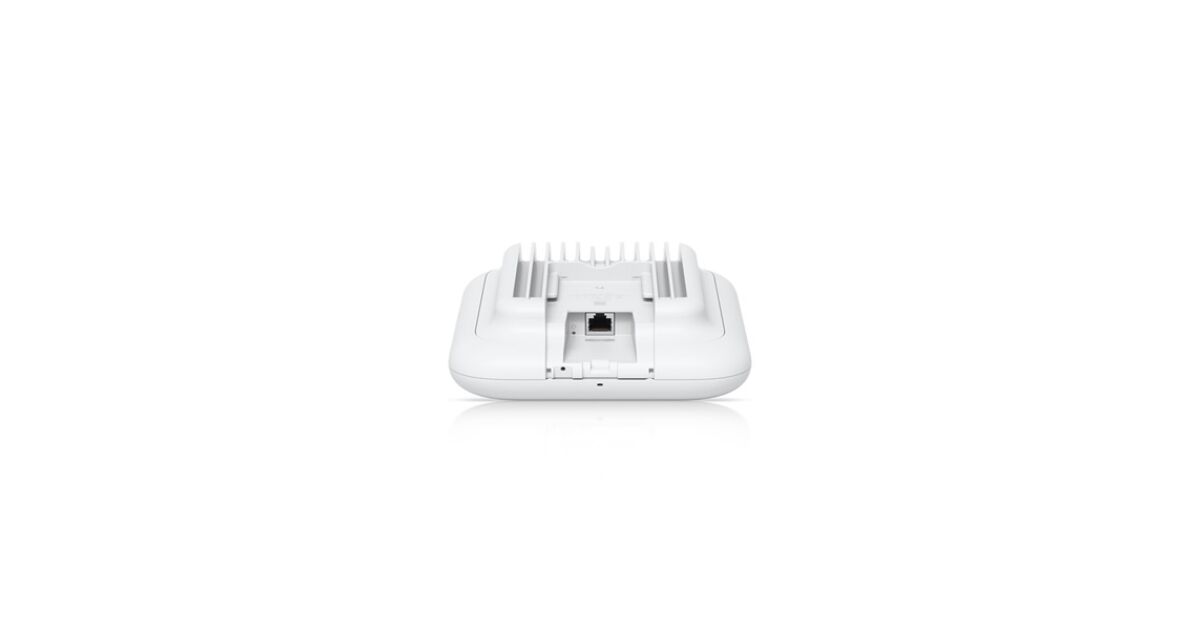

(1) 1/2.5 GbE RJ45 port


Management interface
Ethernet


Power method
PoE+


Power supply
UniFi PoE Switch


Supported voltage range
42.5—57V DC


Max. power consumption
19W


Max. TX power

2.4 GHz

5 GHz

6 GHz


23 dBm

26 dBm

–


MIMO

2.4 GHz

5 GHz

6 GHz


2 x 2 (DL/UL MU-MIMO)

2 x 2 (DL/UL MU-MIMO)

–


Max. data rate

2.4 GHz

5 GHz

6 GHz


688 Mbps (BW40)

4.3 Gbps (BW240)

–


Antenna gain

2.4 GHz

5 GHz

6 GHz


Directional internal: 8 dBi/External omni: 3 dBi

Directional internal: 12.5 dBi/External omni: 4 dBi

–


Antenna beamwidth

2.4 GHz

5 GHz

6 GHz


90°

45°

–


Antennas
(1) Directional internal antenna

(2) External omni antennas

(2) RP-SMA connectors for external antenna


LEDs
(1) Power: white/blue

(4) Mesh signal: blue


Button
Factory reset


Mounting
Wall, ceiling, pole (Included)


Ambient operating temperature
-30 to 60° C (-22 to 140° F)


Ambient operating humidity
5 to 95% noncondensing


Certifications
CE, FCC, IC


Software


WiFi standards
802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)


Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)


BSSID
8 per radio


VLAN
802.1Q


Advanced QoS
Per-user rate limiting


Guest traffic isolation
Supported


Concurrent clients
200+


Supported Data Rates


802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps


802.11b
1, 2, 5.5, 11 Mbps


802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps


802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)


802.11ac
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)


802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)


802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)


Application Requirements


UniFi Network
Version 8.3 and later
