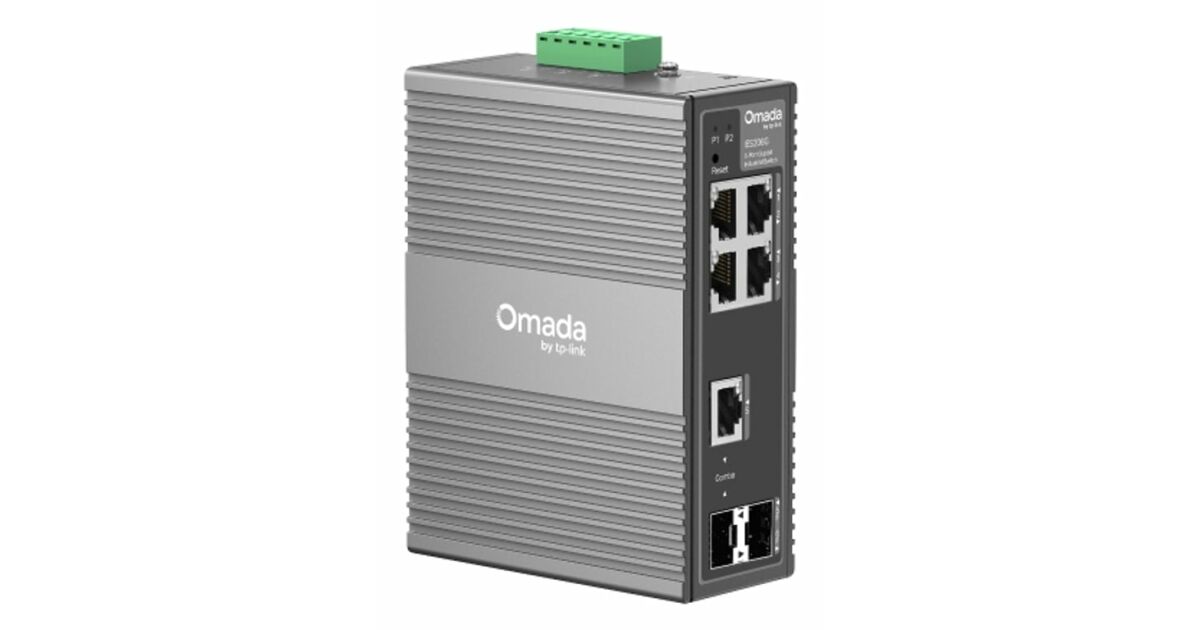

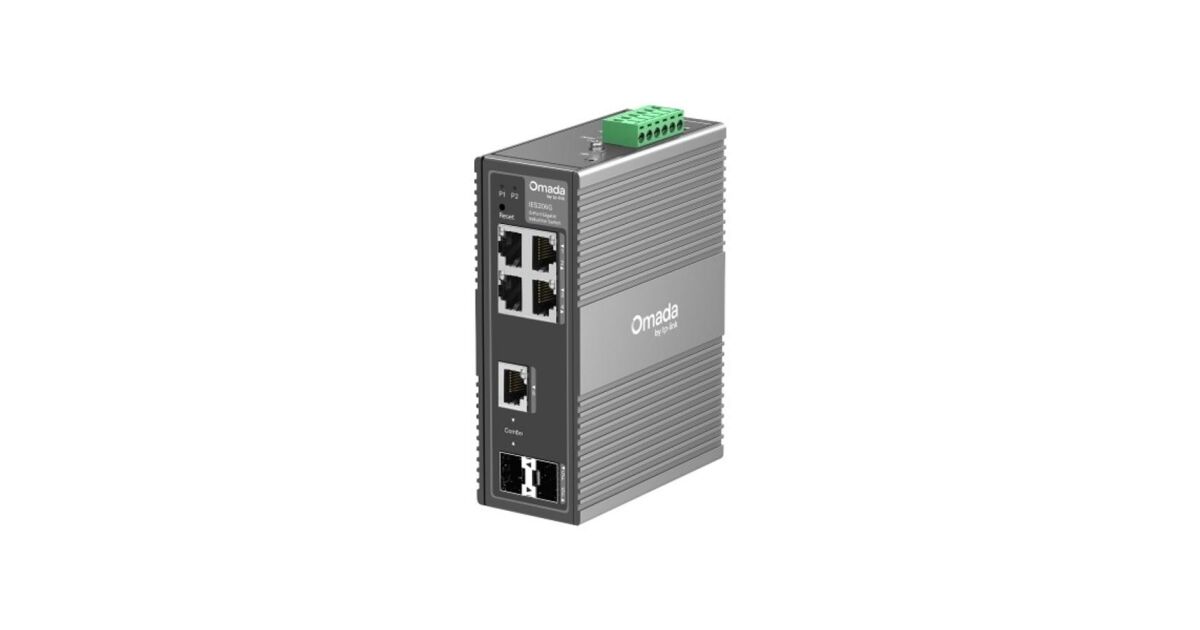

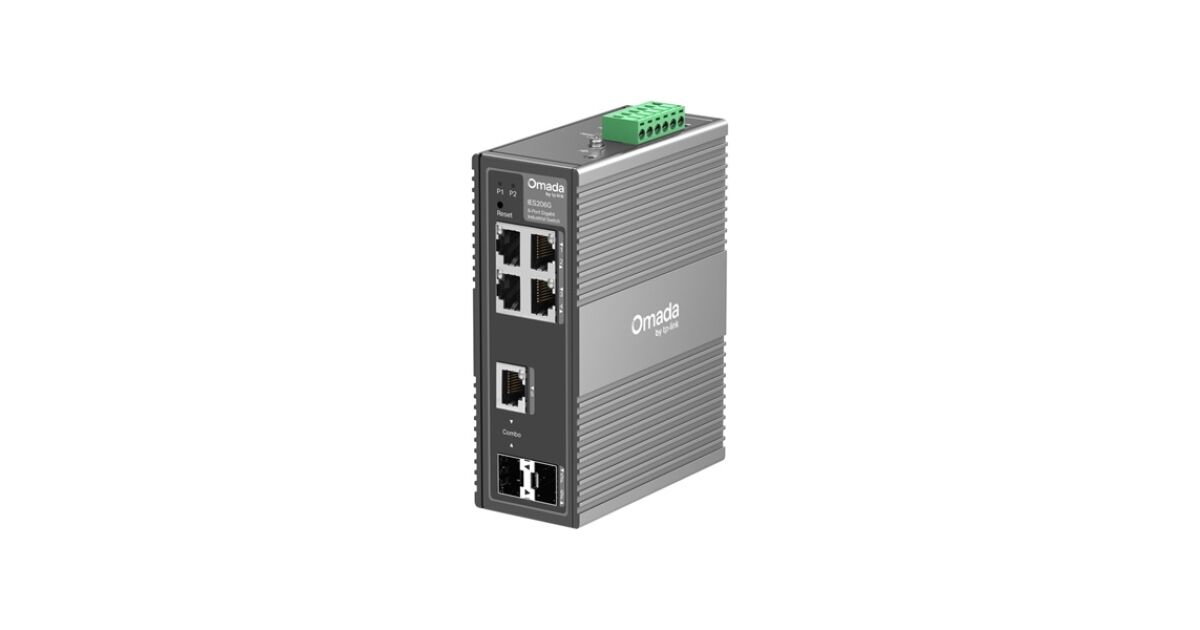

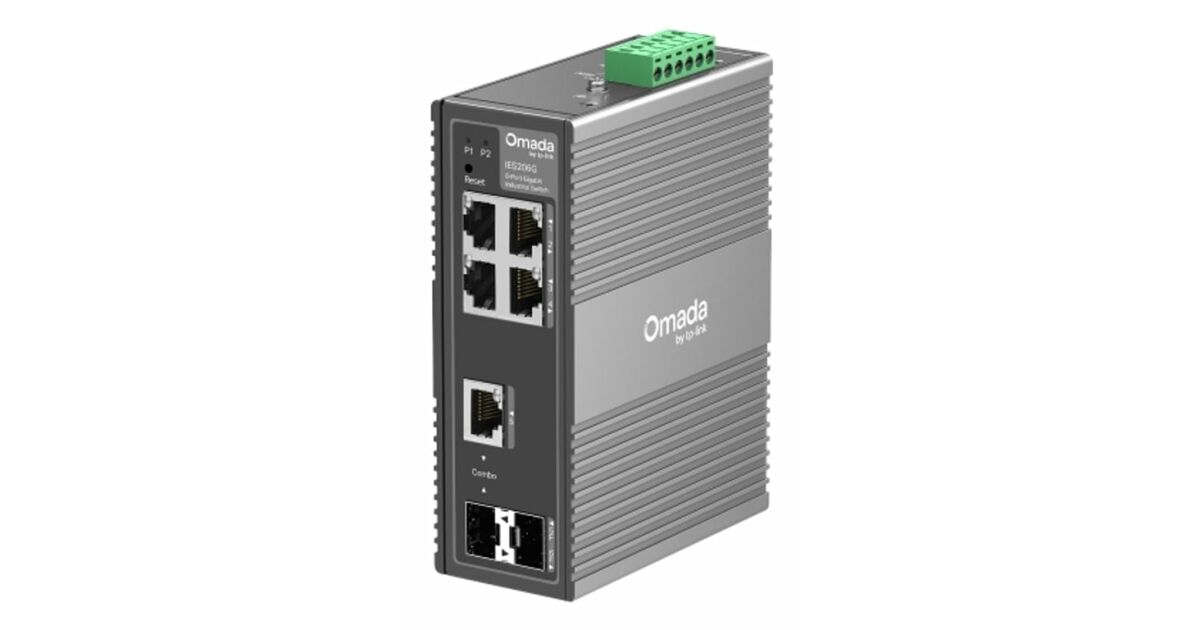

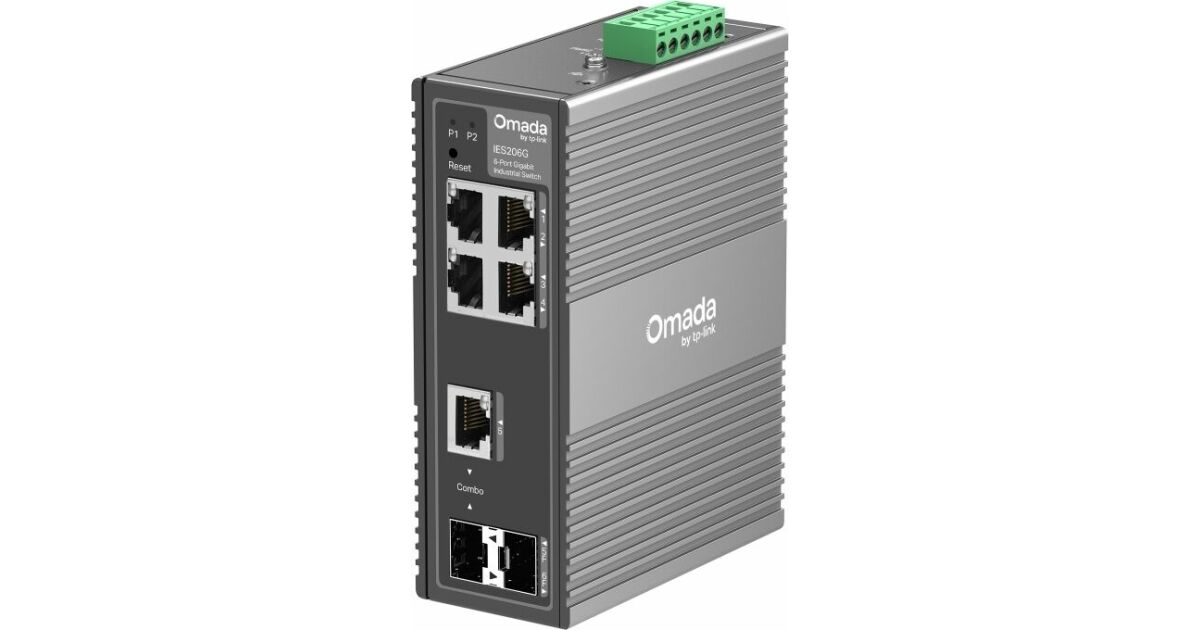

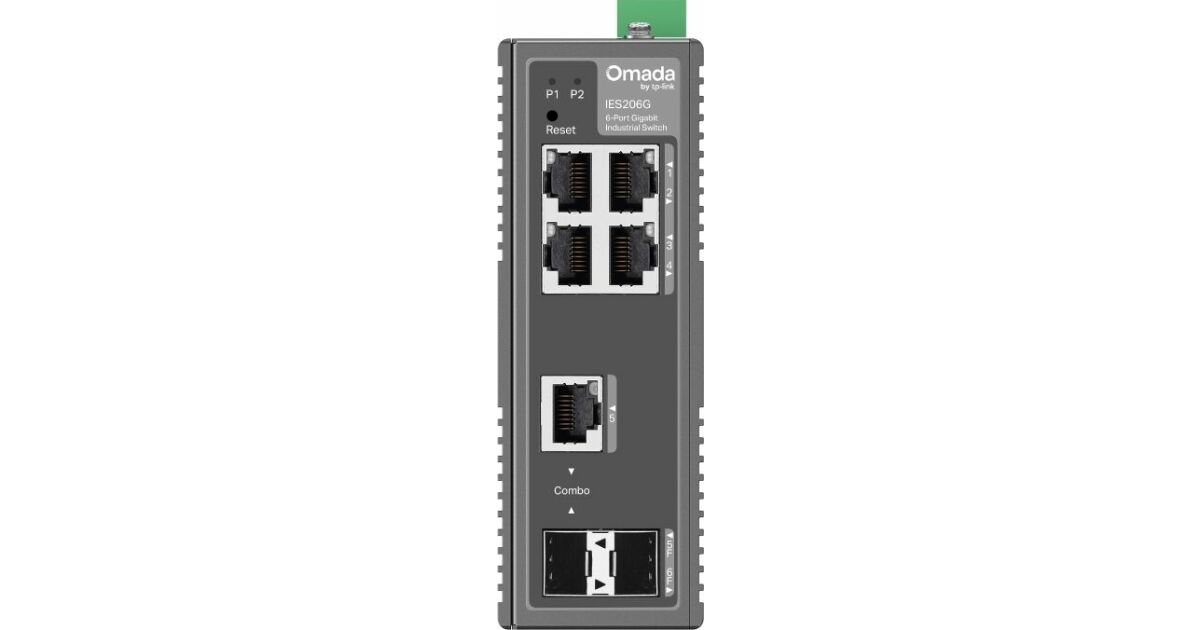

TP-Link Omada Switch 4x Gb RJ45 IES206G
TP-Link Omada Switch 4x Gb RJ45 IES206G
80 100 Ft
Forgalmazó:
TP-Link Omada Switch 4x Gb RJ45 IES206G vásárlás:
TP-Link Omada Switch 4x Gb RJ45 IES206G
Raktáron
3 munkanapos szállítás.
| Házhozszállítás futárral: | 2 500 Ft |
80 100 Ft
Forgalmazó:
TP-Link Omada Switch 4x Gb RJ45 IES206G leírása
CARATTERISTICHE HARDWARE
Interfaccia

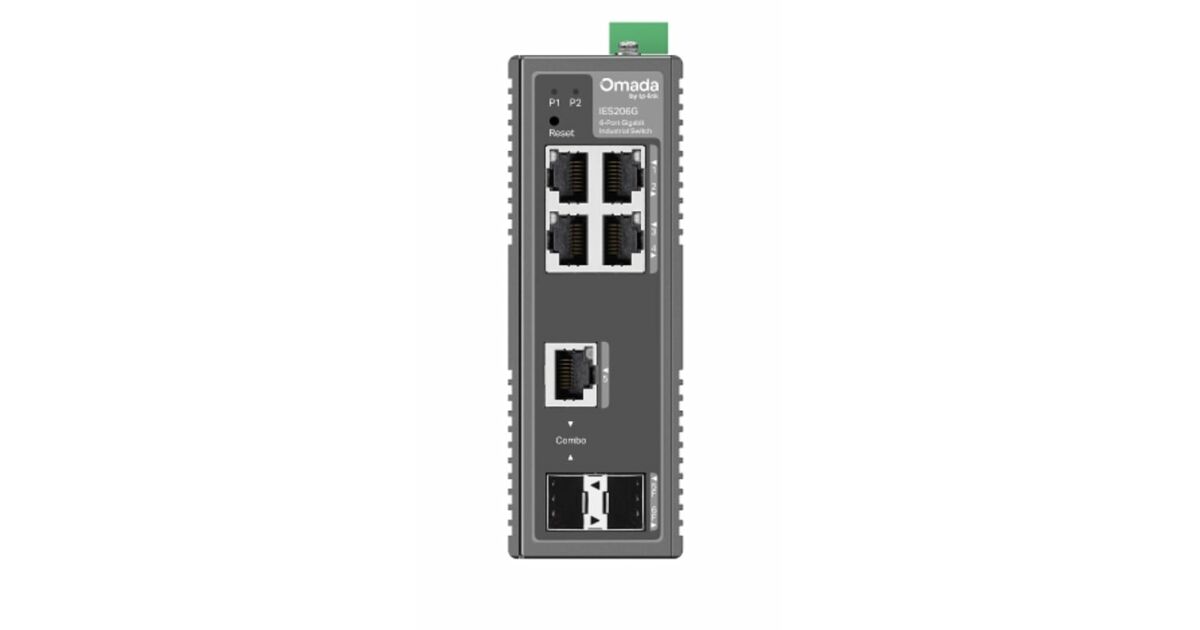

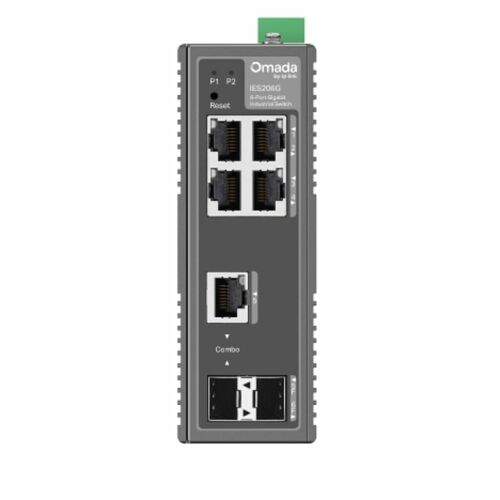

• 4× 10/100/1000 Mbps RJ45 Ports• 1× Gigabit SFP/RJ45 Combo Slot• 1× Gigabit SFP Slot• Auto-Negotiation/Auto MDI/MDIX
Numero ventole
Fanless
Installation
• DIN-rail mounting• Wall mounting
Alimentazione

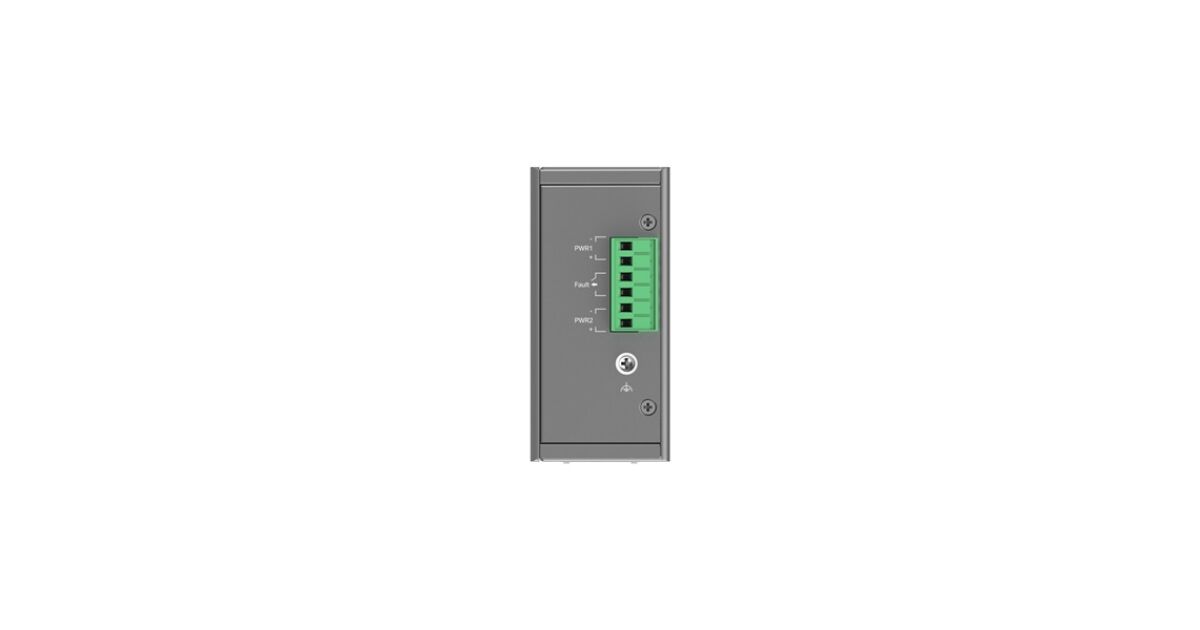

9.6-60V 1+1 Redundant DC Power Input
Dimensioni ( L x P x A )
5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm)
Surge Protection
• ±6 kV in common mode for Ethernet ports• ±4 kV in common mode for DC power input ports
PRESTAZIONI
Capacita di switching
12 Gbps
Packet Forwarding Rate
8.93 Mpps
Tabella ARP
8K
Buffer (pacchetti)
4 Mbit
Jumbo frame
15 KB
CARATTERISTICHE SOFTWARE
QoS (Quality of Service)
• 802.1p DSCP Priority• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rate Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control
Funzionalita L2
• Link Aggregation- Static Link Aggregation- Up to 2 aggregation groups and up to 4 ports per group• Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP• Spanning Tree- STP (802.1d)- RSTP (802.1w)
L2 Multicast
• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave
VLAN
• MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID
Metodo di trasmissione
Store-And-Forward
GESTIONE
Omada App
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller
Cloud Access
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning
Yes. Requires the use of Omada Cloud-Based Controller
Management Features
• Web-based GUI• DHCP Client• Cable Diagnostics• Digital Diagnostic Monitoring (DDM)• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration†
ALTRO
Certificazione
FCC, CE, RoHS
Contenuto della confezione
• IES206G• DIN-Rail Mounting Bracket• Wall-Mounting Plates• Installation Guide
Ambiente
• Operating Temperature: -40?~75? (-40?~167?)• Storage Temperature: -40?~85? (-40?~185?)• Operating Humidity: 5%~95% non-condensing• Storage Humidity: 5%~95% non-condensing
Cikkszám: IES206G
Interfaccia
• 4× 10/100/1000 Mbps RJ45 Ports• 1× Gigabit SFP/RJ45 Combo Slot• 1× Gigabit SFP Slot• Auto-Negotiation/Auto MDI/MDIX
Numero ventole
Fanless
Installation
• DIN-rail mounting• Wall mounting
Alimentazione
9.6-60V 1+1 Redundant DC Power Input
Dimensioni ( L x P x A )
5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm)
Surge Protection
• ±6 kV in common mode for Ethernet ports• ±4 kV in common mode for DC power input ports
PRESTAZIONI
Capacita di switching
12 Gbps
Packet Forwarding Rate
8.93 Mpps
Tabella ARP
8K
Buffer (pacchetti)
4 Mbit
Jumbo frame
15 KB
CARATTERISTICHE SOFTWARE
QoS (Quality of Service)
• 802.1p DSCP Priority• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rate Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control
Funzionalita L2
• Link Aggregation- Static Link Aggregation- Up to 2 aggregation groups and up to 4 ports per group• Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP• Spanning Tree- STP (802.1d)- RSTP (802.1w)
L2 Multicast
• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave
VLAN
• MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID
Metodo di trasmissione
Store-And-Forward
GESTIONE
Omada App
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller
Cloud Access
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning
Yes. Requires the use of Omada Cloud-Based Controller
Management Features
• Web-based GUI• DHCP Client• Cable Diagnostics• Digital Diagnostic Monitoring (DDM)• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration†
ALTRO
Certificazione
FCC, CE, RoHS
Contenuto della confezione
• IES206G• DIN-Rail Mounting Bracket• Wall-Mounting Plates• Installation Guide
Ambiente
• Operating Temperature: -40?~75? (-40?~167?)• Storage Temperature: -40?~85? (-40?~185?)• Operating Humidity: 5%~95% non-condensing• Storage Humidity: 5%~95% non-condensing
Cikkszám: IES206G
