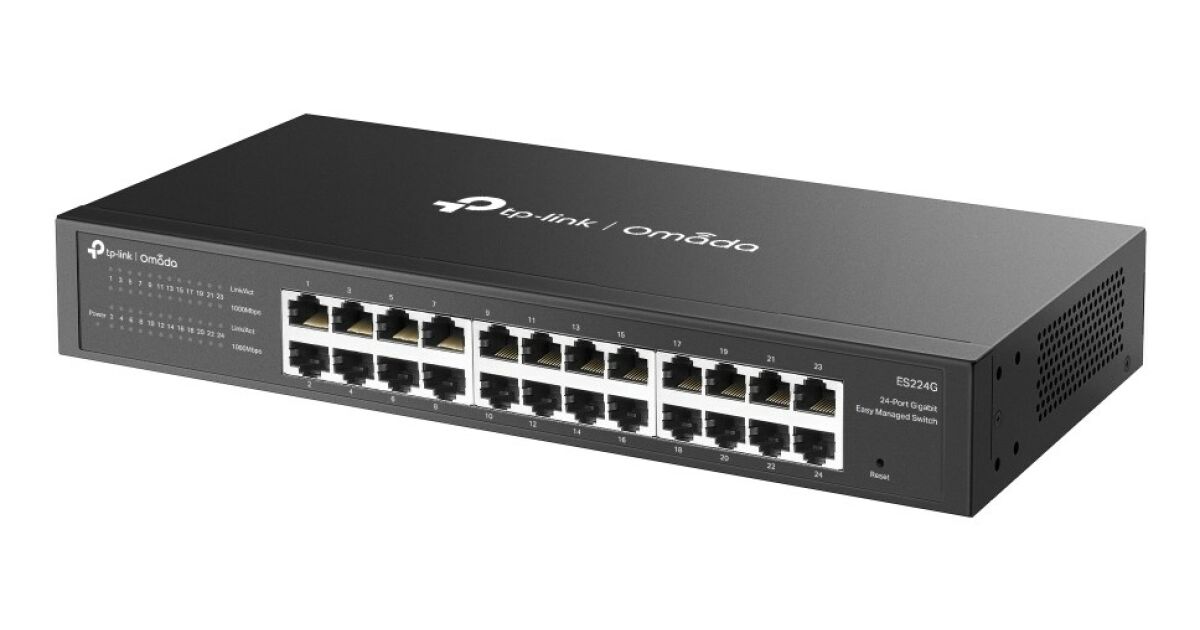

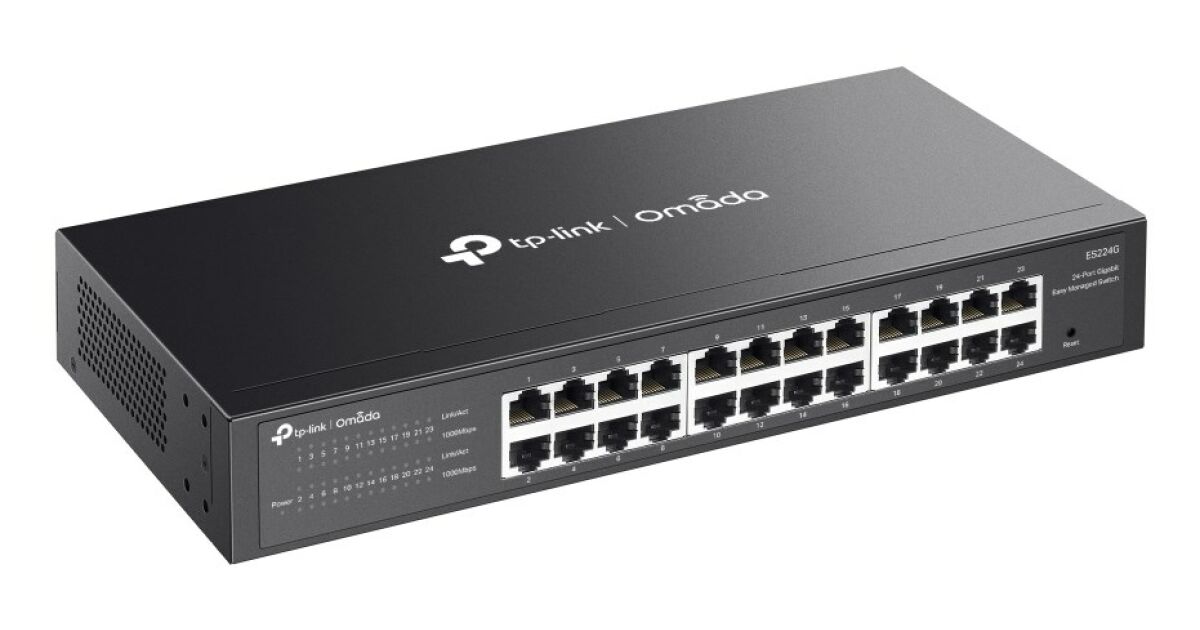

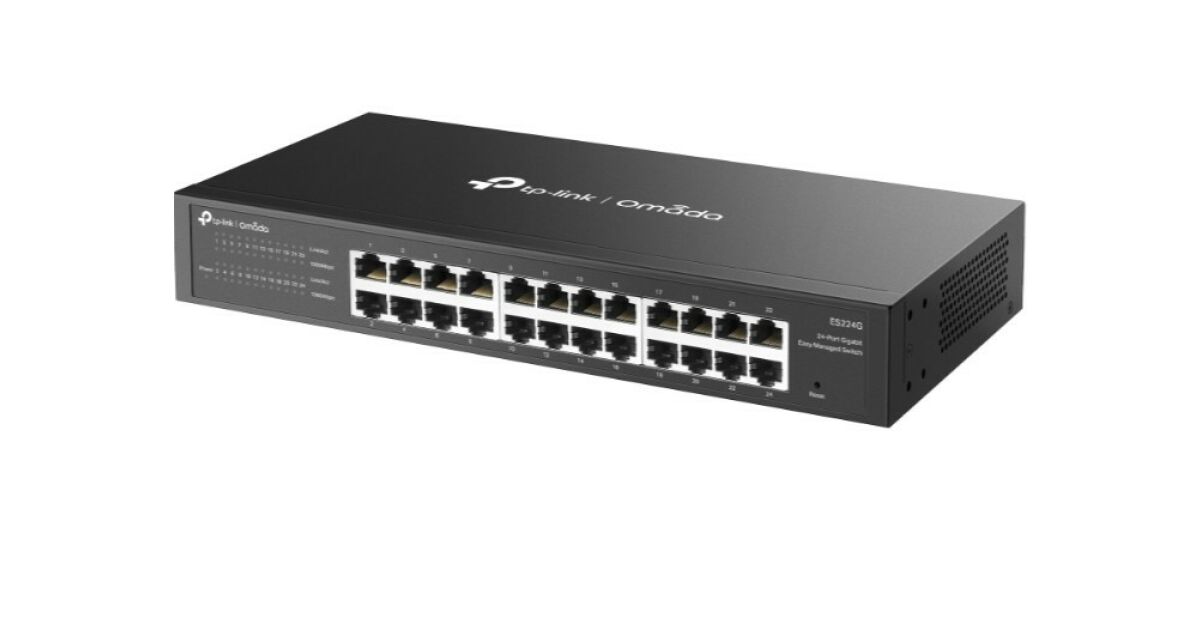

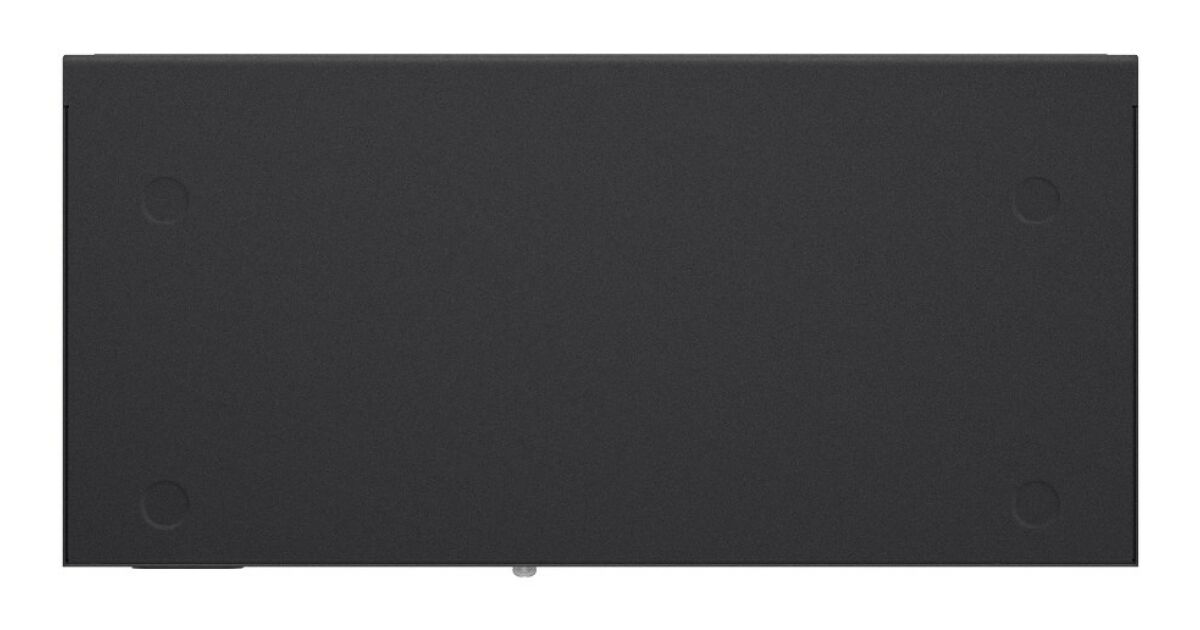

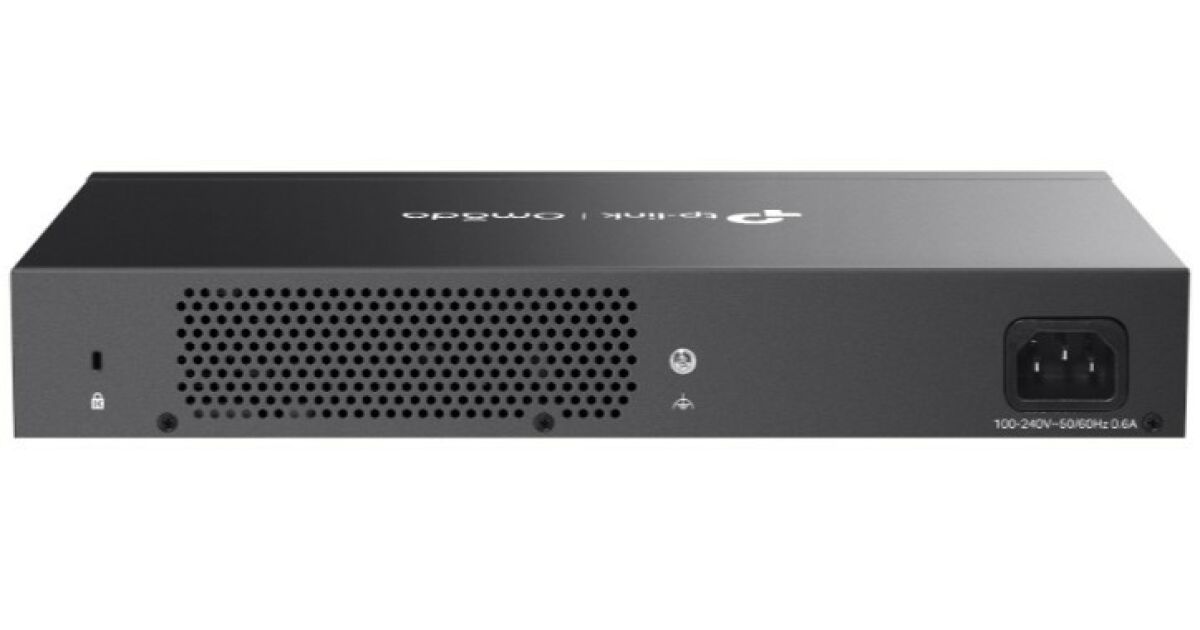

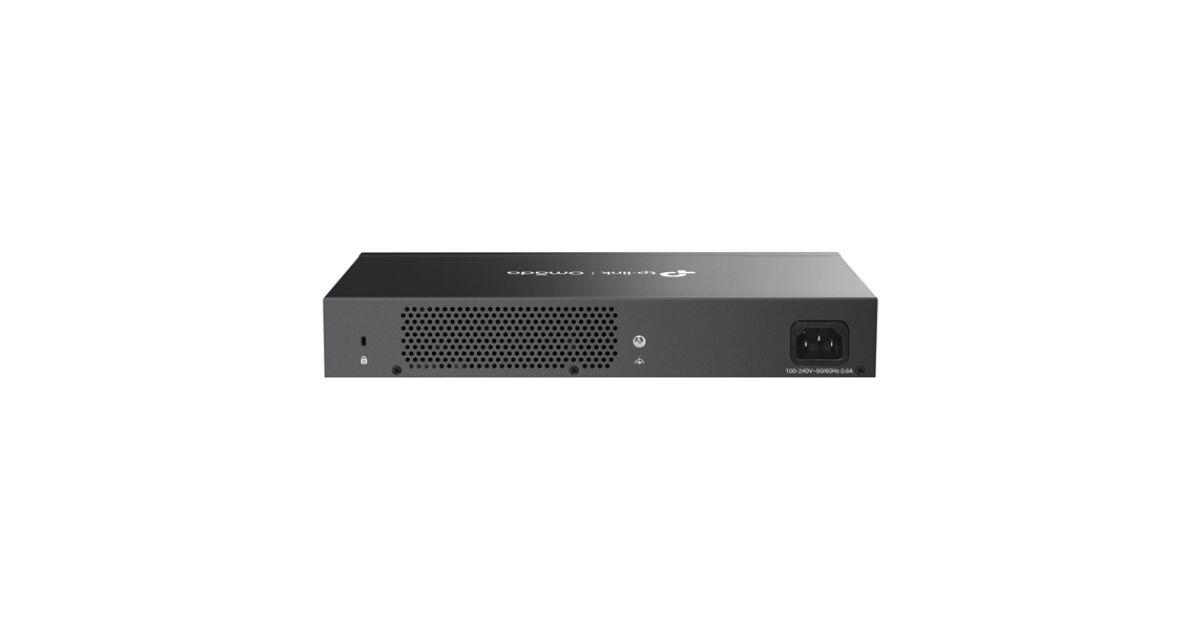

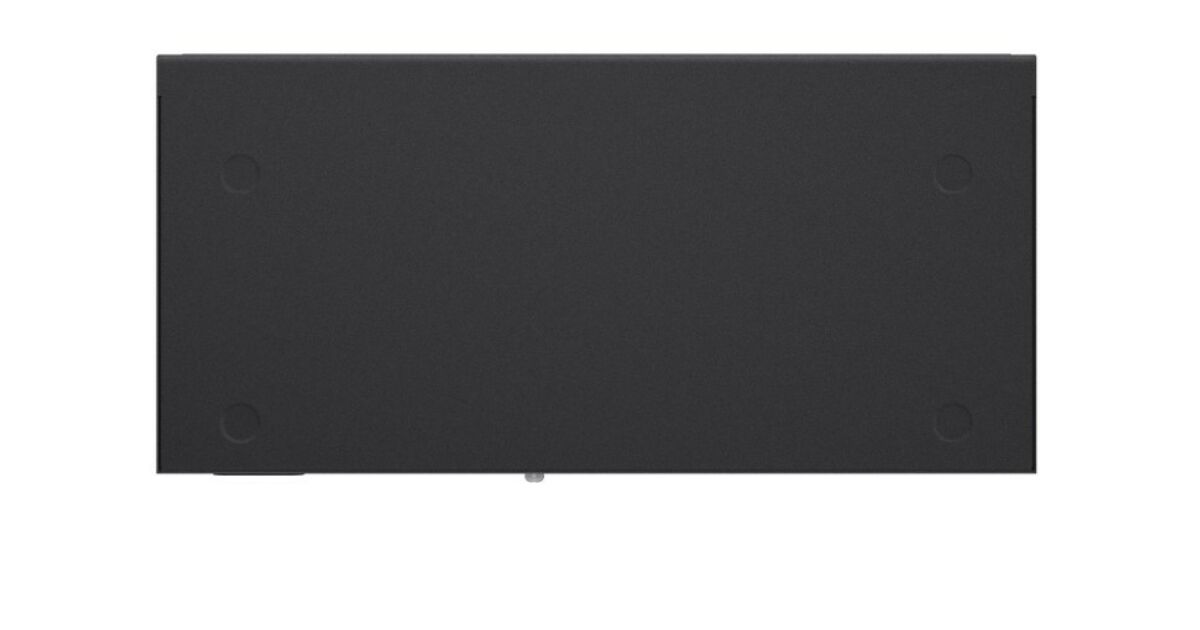

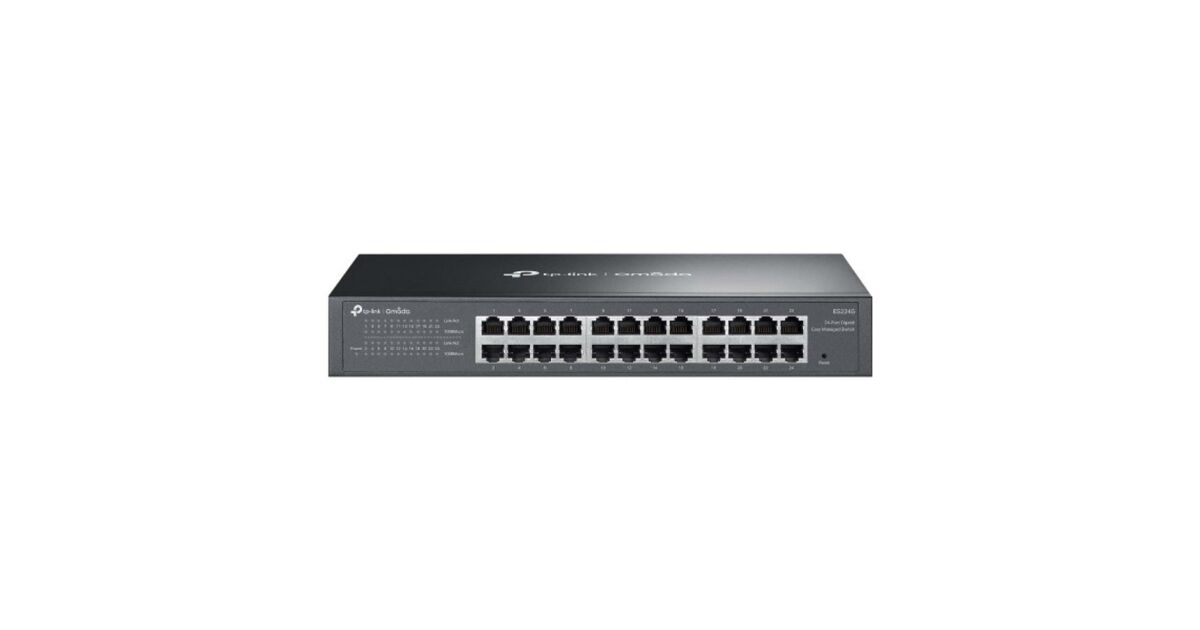

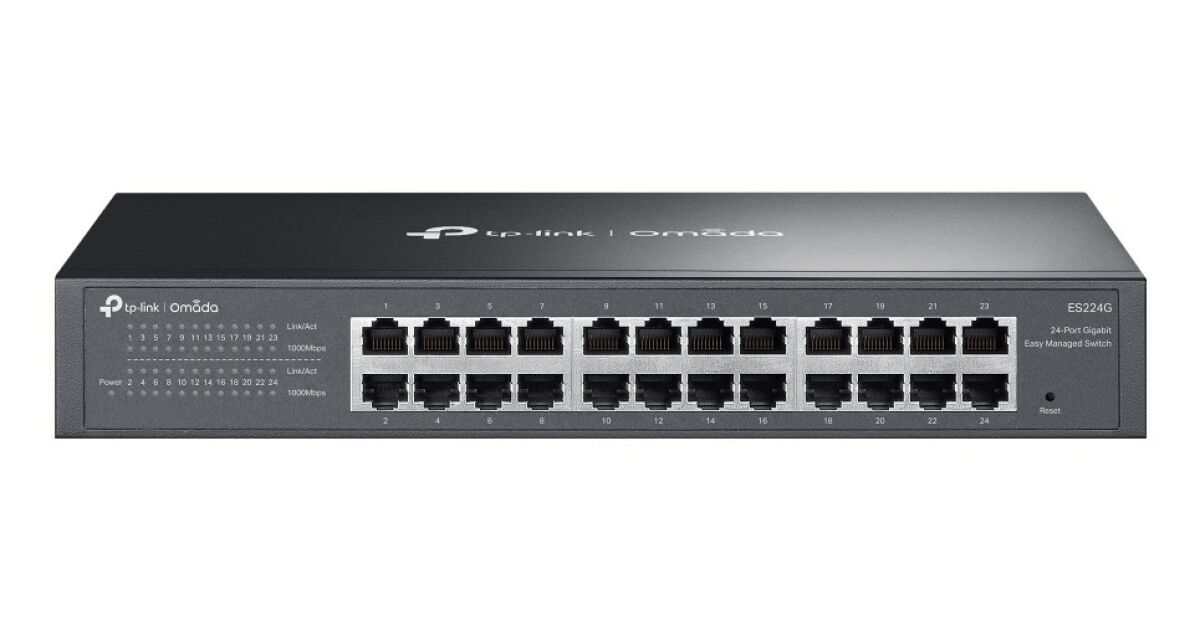

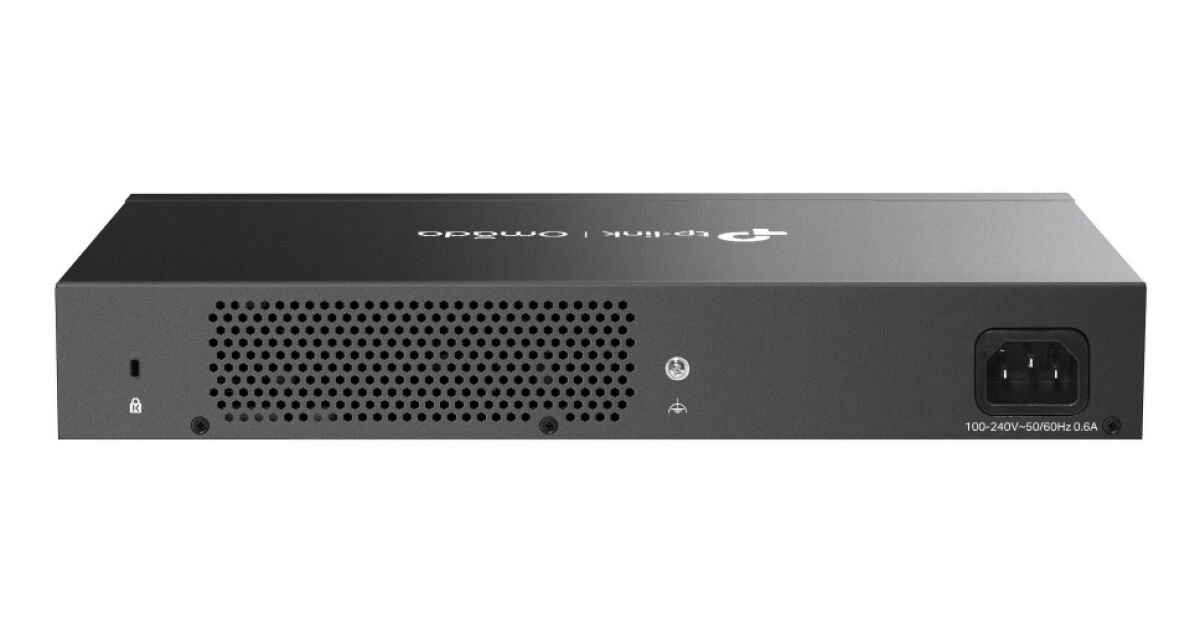

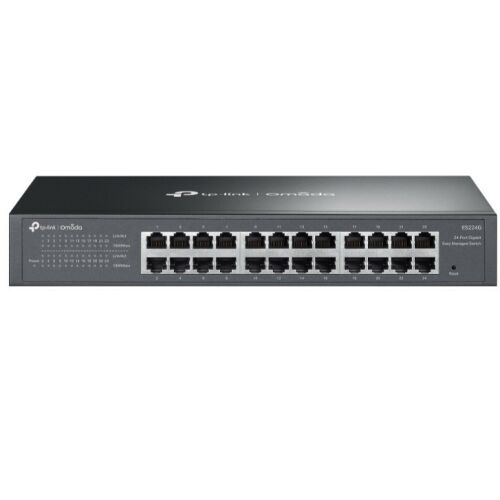

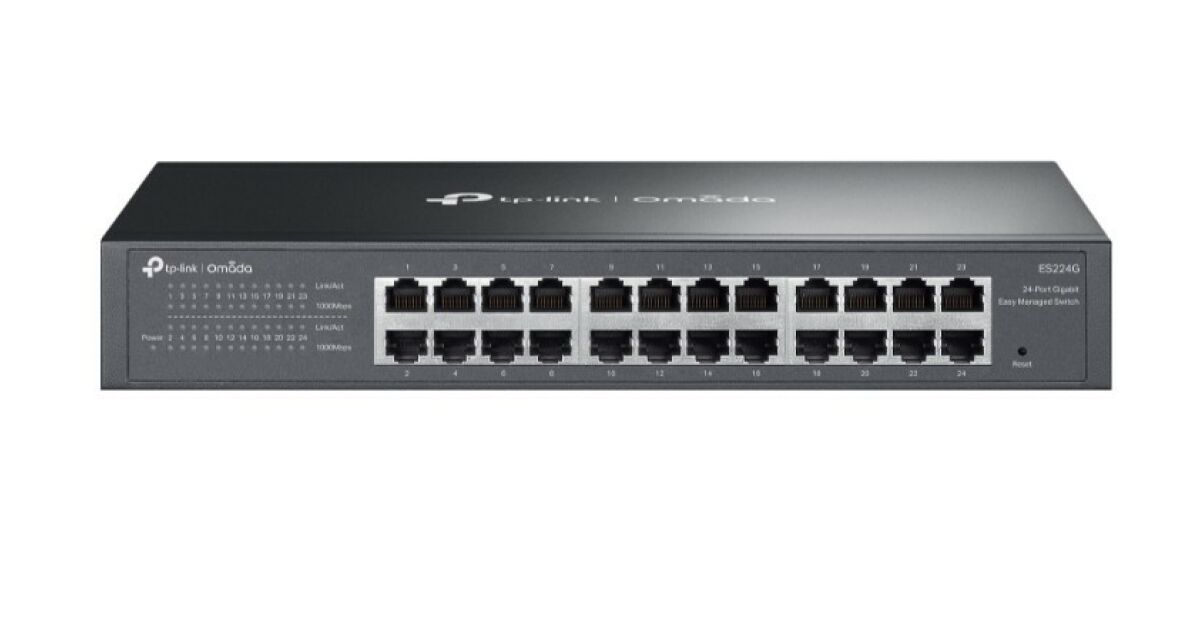

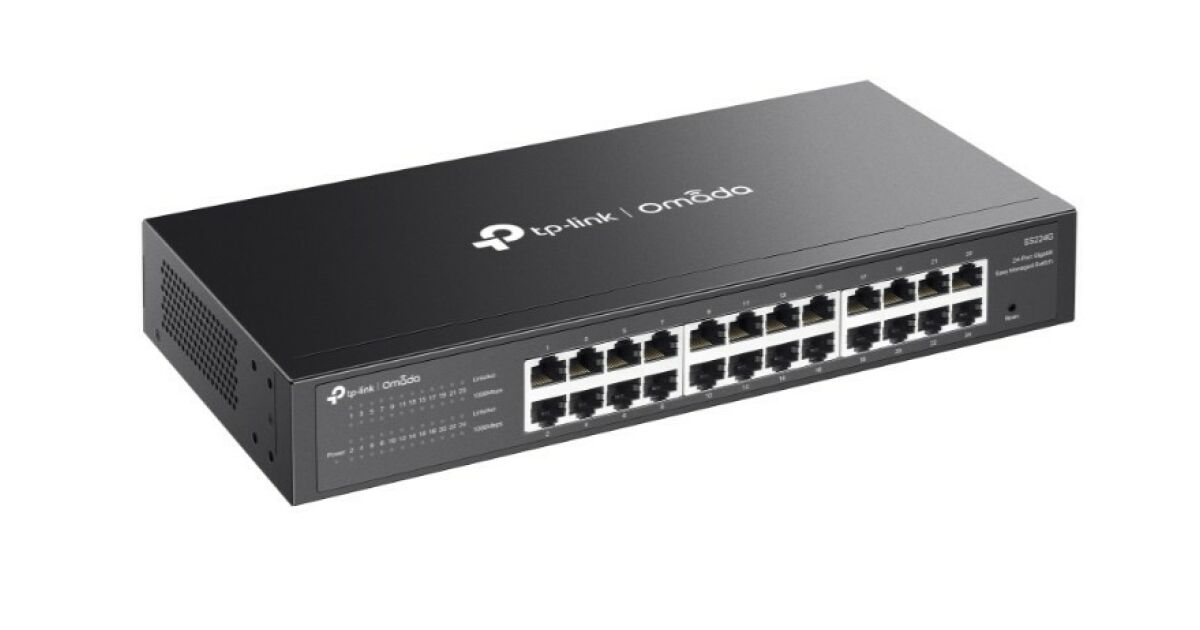

TP-Link Omada ES224G Managed L2 Gigabit Ethernet (10/100/1000) Fekete Hálózati switch
TP-Link Omada ES224G Managed L2 Gigabit Ethernet (10/100/1000) Fekete Hálózati switch
51 710 Ft
Forgalmazó:
TP-Link Omada ES224G Managed L2 Gigabit Ethernet (10/100/1000) Fekete Hálózati switch vásárlás:
TP-Link Omada ES224G Fémházas 24-port Gigabit Switch
Raktáron
2 munkanapos szállítás.
| GLS házhozszállítás: | 2 090 Ft | |
| GLS csomagautomata: | 1 190 Ft | |
| Házhozszállítás futárral: | 1 890 Ft | |
| MPL házhozszállítás: | 1 890 Ft |
51 710 Ft
Készleten: 4
db
Forgalmazó:
TP-Link Omada ES224G Managed L2 Gigabit Ethernet (10/100/1000) Fekete Hálózati switch leírása
HARDWARE FEATURES
Interface
• 24× 10/100/1000 Mbps RJ45 Ports• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity
Fanless
Installation
• Desktop• Rackmountable
Physical Security Lock
?
Power Supply
100-240 V~50/60 Hz
Dimensions ( W x D x H )
11.6 × 5.5 × 1.7 in (294× 140 × 44 mm)
Surge Protection
±6kV
PERFORMANCE
Switching Capacity
48 Gbps
Packet Forwarding Rate
35.7 Mpps
MAC Address Table
8K
Packet Buffer Memory
4 Mbit
Jumbo Frame
15 KB
SOFTWARE FEATURES
Quality of Service
• Port-based/802.1p/DSCP QoS• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control?
L2 Features
• Static Link Aggregation• Loop Prevention / Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP
L2 Multicast
• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave
VLAN
• MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID
Transmission Method
Store-And-Forward
Management Features
Omada App
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller
Cloud Access
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning
Yes. Requires the use of Omada Cloud-Based Controller
Management Features
• Web-based GUI• DHCP Client• Cable Diagnostics• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration†
OTHERS
Certification
FCC, CE, RoHS
Package Content
• ES224G• Power Cord• Rubber Feet• Mounting Brackets• Screws• Installation Guide
Environment
• Operating Temperature: -5?~50? (23?~122?)• Storage Temperature: -40?~70? (-40?~158?)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing
Cikkszám: ES224G
Interface
• 24× 10/100/1000 Mbps RJ45 Ports• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity
Fanless
Installation
• Desktop• Rackmountable
Physical Security Lock
?
Power Supply
100-240 V~50/60 Hz
Dimensions ( W x D x H )
11.6 × 5.5 × 1.7 in (294× 140 × 44 mm)
Surge Protection
±6kV
PERFORMANCE
Switching Capacity
48 Gbps
Packet Forwarding Rate
35.7 Mpps
MAC Address Table
8K
Packet Buffer Memory
4 Mbit
Jumbo Frame
15 KB
SOFTWARE FEATURES
Quality of Service
• Port-based/802.1p/DSCP QoS• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control?
L2 Features
• Static Link Aggregation• Loop Prevention / Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP
L2 Multicast
• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave
VLAN
• MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID
Transmission Method
Store-And-Forward
Management Features
Omada App
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller
Cloud Access
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning
Yes. Requires the use of Omada Cloud-Based Controller
Management Features
• Web-based GUI• DHCP Client• Cable Diagnostics• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration†
OTHERS
Certification
FCC, CE, RoHS
Package Content
• ES224G• Power Cord• Rubber Feet• Mounting Brackets• Screws• Installation Guide
Environment
• Operating Temperature: -5?~50? (23?~122?)• Storage Temperature: -40?~70? (-40?~158?)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing
Cikkszám: ES224G
