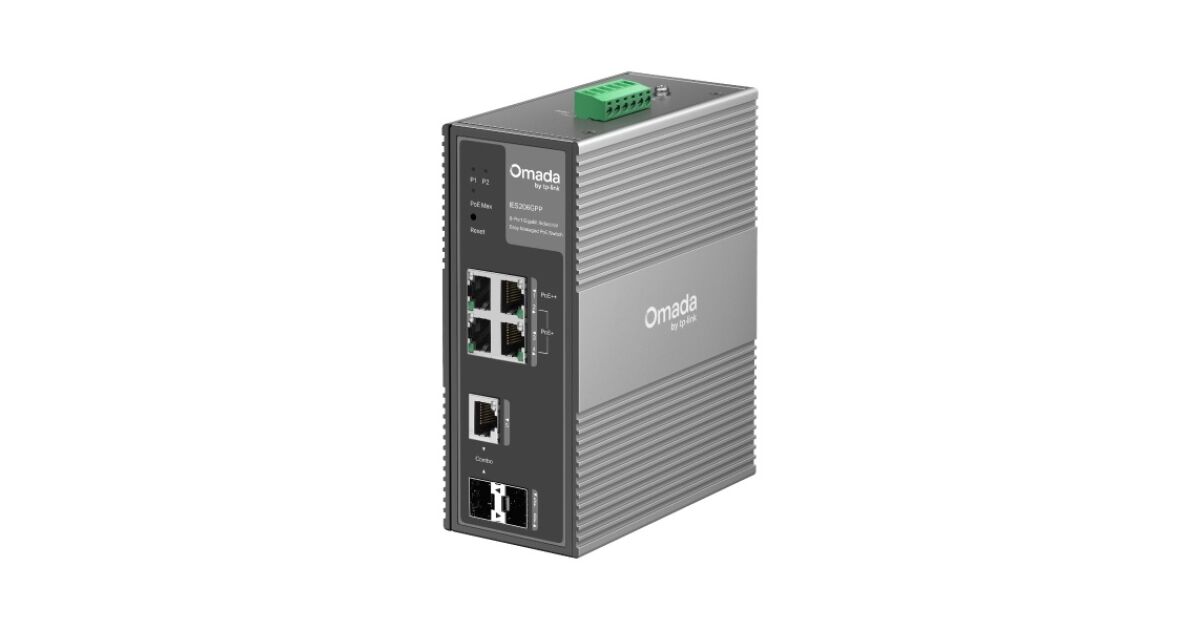

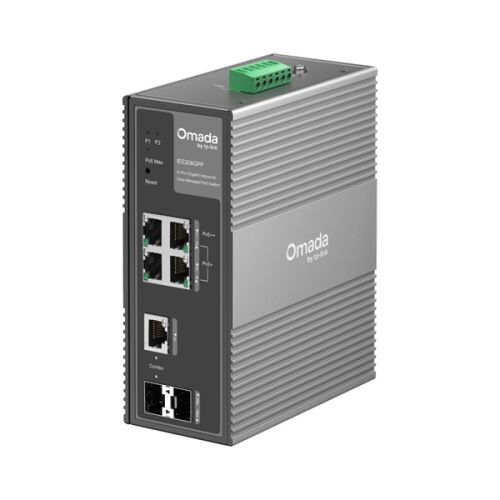

TP-Link IES206GPP hálózati kapcsoló Vezérelt Gigabit Ethernet (10/100/1000) Ethernet-áramellátás (PoE) támogatása Fekete

HARDWARE FEATURES


Interface
• 1× 10/100/1000 Mbps PoE++ RJ45 Ports• 3× 10/100/1000 Mbps PoE+ RJ45 Ports• 1× Gigabit SFP/RJ45 Combo Slot• 1× Gigabit SFP Slot• Auto-Negotiation/Auto MDI/MDIX

Fan Quantity
Fanless

Installation
• DIN-rail mounting• Wall mounting

Physical Security Lock
?

Power Supply

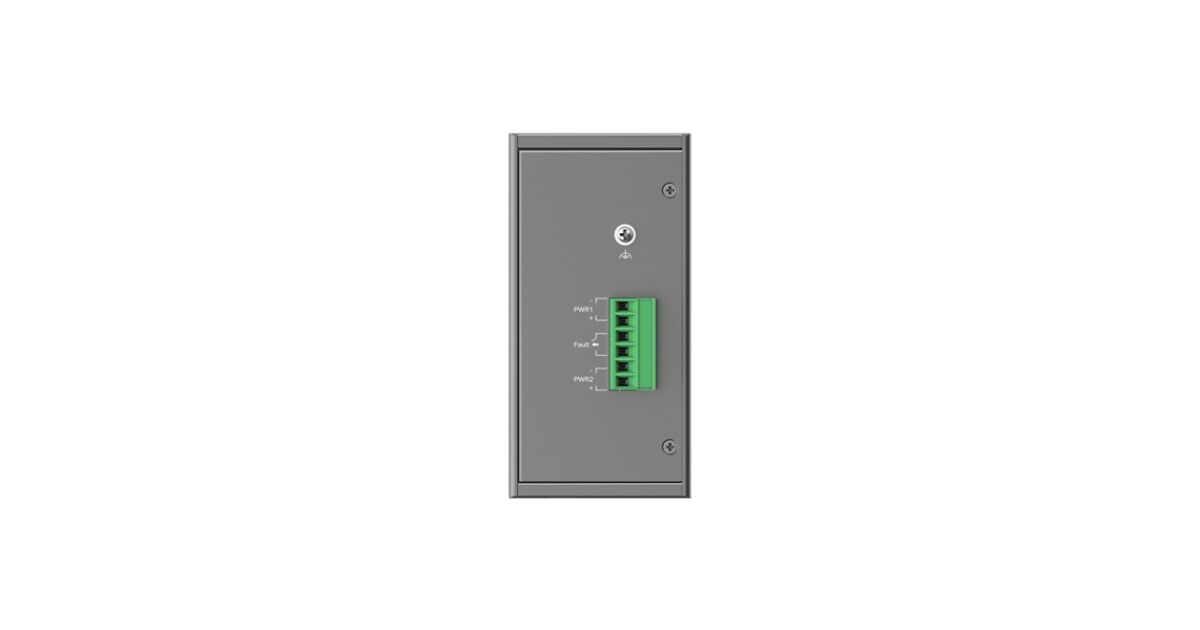

12-57V 1+1 Redundant DC Power Input

PoE Ports (RJ45)
• Standard: 802.3af/at/bt compliant• PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port• PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port• PoE Budget:- 60W (Input: 12V / 7.0A - 21V / 3.5A))- 120W (Input: 21V / 6.5A - 57V / 2.3A)

Dimensions ( W x D x H )
6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm)

Surge Protection
• ±6 kV in common mode for Ethernet ports• ±4 kV in common mode for DC power input ports



PERFORMANCE


Switching Capacity
12 Gbps

Packet Forwarding Rate
8.93 Mpps

MAC Address Table
8K

Packet Buffer Memory
4 Mbit

Jumbo Frame
15 KB



SOFTWARE FEATURES


Quality of Service
• 802.1p DSCP Priority• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rate Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control

L2 Features
• Link Aggregation- Static Link Aggregation- Up to 2 aggregation groups and up to 4 ports per group• Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP• Spanning Tree- STP (802.1d)- RSTP (802.1w)

L2 Multicast
• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave

VLAN
• MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID

Transmission Method
Store-And-Forward



Management Features


Omada App
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management
• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Cloud Access
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning
Yes. Requires the use of Omada Cloud-Based Controller

Management Features
• Web-based GUI• DHCP Client• Cable Diagnostics• Digital Diagnostic Monitoring (DDM)• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration†



OTHERS


Certification
FCC, CE, RoHS

Package Content
• IES206GPP• DIN-Rail Mounting Bracket• Wall-Mounting Plates• Installation Guide

Environment
• Operating Temperature: -40?~75? (-40?~167?)• Storage Temperature: -40?~85? (-40?~185?)• Operating Humidity: 5%~95% non-condensing• Storage Humidity: 5%~95% non-condensing
