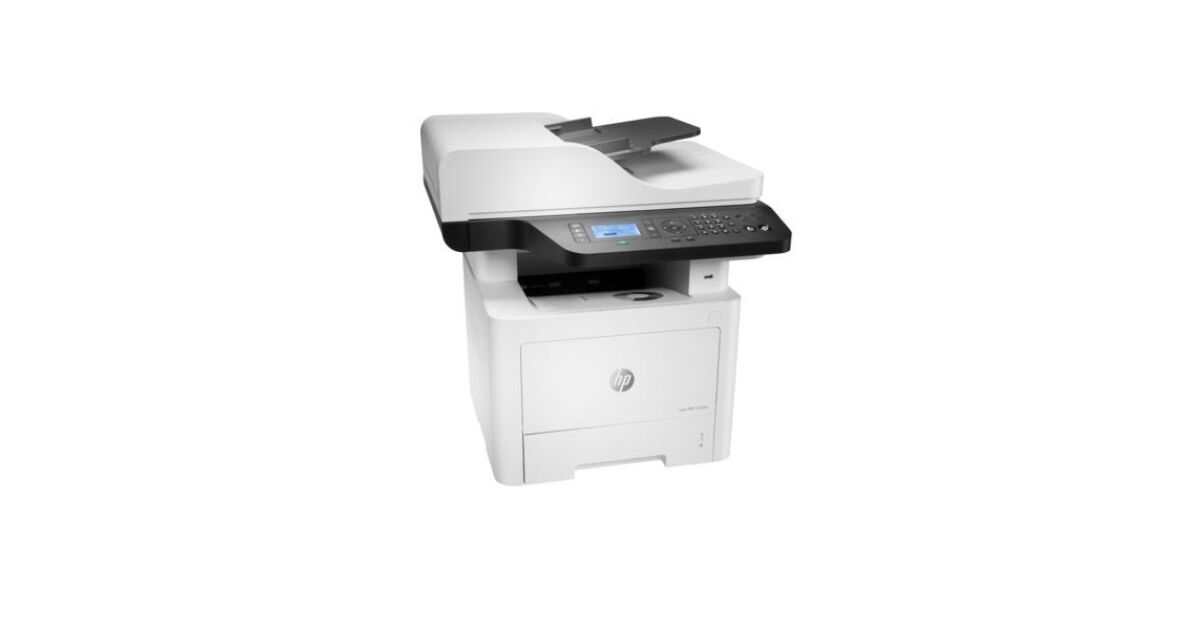

HP - Laser MFP 432fdn - 7UQ76A

Functions

• Print, copy, scan, fax

Printing specifications

Print speed black:Normal: Up to 40 ppmFirst page out (ready)Black: As fast as 6.5 sec ¹
(Frist page out speed will vary according to factors including but not limited to the complexity of the document, the user environment and the measurement methodology)Duty cycle (monthly, A4)Up to 100,000 pagesRecommended monthly page volume1,500 to 3,500
(HP recommends that the number of printed pages per month be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period.)Print technologyLaserPrint quality black (best)Up to 1200 x 1200 dpiPrint Resolution TechnologiesNormal (600 x 600 dpi), High Resolution (1200 x 1200 dpi)Print languages

• HP PCL 6
• HP PCL 5e
• HP postscript level 3 emulation

Display

• 4-line LCD

Processor speed600 MHzAutomatic paper sensorNoReplacement cartridgesFor distribution and use in Europe, Middle East, Russia, CIS, and Africa only: HP 331A Black Original LaserJet Toner Cartridge (5,000 pages) W1331A
HP 331X High Yield Black Original LaserJet Toner Cartridge (15,000 pages) W1331X
HP Black Contract Original Laser Toner Cartridge (15,000 pages) W1331XC
HP Black Contract Original Laser Toner Cartridge (15,000 pages) W1331XH
HP Black Contract Original Laser Imaging Drum (30,000 yield) W1332AH
For common use: HP 332A Black Original Laser Imaging Drum (30,000 yield) W1332A
HP Black Contract Original Laser Imaging Drum (30,000 yield) W1332AC
(Black declared yields based on ISO/IEC 19752 and continuous printing. Actual yields vary considerably based on images printed and other factors. For details see http://www.hp.com/go/learnaboutsupplies. Pages may vary based on customer printing conditions and usage.)
This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges. More at:
http://www.hp.com/learn/ds

Connectivity

Mobile printing capabilityPrinterOn PrintWireless capability

• No

Connectivity, standard

• Hi-Speed USB 2.0 port, Host USB
• built-in Gigabit Ethernet 10/100/1000 Base-TX network port

Connectivity, optional

• No

Minimum system requirements

• CD-ROM or DVD drive, or Internet connection
• dedicated USB or network connection or Wireless connection
• 200 MB available hard disk space
• Windows: for OS hardware requirements see http://www.microsoft.com

Compatible operating systemsWindows 7 (32/64-bit), Windows 2008 Server R2, Windows 8 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64-bit), Windows 2012 Server, Windows 2016 Server
(Windows 7 or higher)Memory specificationsMemory256MBMaximum memory512MB
(Maximum Memory can be expanded to 512 MB (system memory) by replacing standard memory module. 512 MB Memory DIMM Kit (5PJ81A) can be purchased separately.)

Paper handling

Paper handling input, standard250 sheet input tray
50 sheet multi-purpose tray
automatic two-sided printingPaper handling input, optionalOptional 520 sheet paper x 1 (520 sheet 80g/m²
550 sheet 75g/m²)Paper handling output, standard

• 150 sheet output bin

Paper handling output, optional

• None

Maximum output capacity (sheets)Up to 150 sheetsDuplex printing

• Automatic (standard)

Media sizes supported

• Tray 1: A4, A5, A6, B5 (ISO), B5 (JIS), Oficio, Envelope (DL, C5, C6)
• Tray 2: A4, A5, A6, B5 (ISO), B5 (JIS), Oficio
• Tray 3: A4, A5, A6, B5 (ISO), B5 (JIS), Oficio

Media sizes, custom

• Tray 1: 76 x 127 to 216 x 356 mm
• Tray 2: 98 x 148 to 216 x 356 mm
• Tray 3: 98 x 148 to 216 x 356 mm

Media typesPlain, Thick, Thin, Cotton, Colour, Preprinted, Recycled, Labels, CardStock, Bond, Archive, EnvelopeMedia weight, supportedTray 1: 60 to 220 g/m²; Tray 2: 60 to 163 g/m²; Tray 3: 60 to 163 g/m²; Duplex: 60 to 120 g/m²Media weights, supported ADF48 to 105 g/m²

Scanner specifications

Scanner typeFlatbed, ADFScan file formatPDF, JPG, TIFF, XPSScan resolution, opticalUp to 1200 dpi (flatbed); Up to 600 dpi (ADF)Scan size, maximum216 x 297 mmScan size (ADF), maximum216 x 356 mmScan size (ADF), minimum145 x 145 mmScan speed (normal, A4)Up to 24 ipm (black and white), up to 12 ipm (colour)Automatic document feeder capacityStandard, 50 sheetsDigital sending standard features

• Scan to email; Scan to folder (SMB,FTP); Scan to HDD; Scan to USB drive; Scan to WSD; WSD Scan; Scan to PC; PC Scan; LDAP Authentication

File Format Supported

• GIF
• PDF
• XPS
• JPEG

Scan input modes

• Front-panel scan, copy, email, user application via TWAIN or WIA

Copier specifications

Copy speed (normal)Black: Up to 40 cpmCopy resolution (black text)Up to 600 x 600 dpiCopy reduce / enlarge settings25 to 400%Copies, maximumUp to 99 copies

Fax specifications

FaxingYes, black & white and color (send only)Fax transmission speed33.6 kbpsFax memoryUp to 500 pagesFax Resolution Black (best)Up to 300 x 300 dpiFax Speed Dials, Maximum NumberUp to 200 numbersFax Broadcast Locations210

Power and operating requirements

PowerBuilt-in power supplyPower consumption563 watts (active printing), 40 watts (ready), 0.81 watts (sleep), 0.100 watts (auto-off), 0.300 watts (off)Blue Angel compliant

• Yes, Blue Angel DE-UZ 205—only ensured when using Original HP supplies

Operating temperature range15 to 32°CRecommended operating humidity range30 to 70% RHAcoustic power emissions (ready)Inaudible

Dimensions and weight

Minimum dimensions (W x D x H)469 x 444.3 x 482.1 mm
(Without trays and covers not extended)Maximum dimensions (W x D x H)469 x 479.5 x 628.7 mmWeight16.91 kg
(With Toner cartridge and Drum unit)Package weight21.28 kg

What's included

What's in the boxHP Laser MFP 432fdn printer
Preinstalled Black Toner Cartridge (yield 3,000 pages)
Imaging Drum (yield 30,000 pages)
Power Cord
Fax cable
Warranty card
Errata sheet
Flyer support
Setup guide
Regulatory FlyerCable includedNo USB cable; Please purchase USB cable separatelyReplacement cartridges

• For distribution and use in Europe, Middle East, Russia, CIS, and Africa only: HP 331A Black Original LaserJet Toner Cartridge (5,000 pages) W1331A
• HP 331X High Yield Black Original LaserJet Toner Cartridge (15,000 pages) W1331X
• HP Black Contract Original Laser Toner Cartridge (15,000 pages) W1331XC
• HP Black Contract Original Laser Toner Cartridge (15,000 pages) W1331XH
• HP Black Contract Original Laser Imaging Drum (30,000 yield) W1332AH
• For common use: HP 332A Black Original Laser Imaging Drum (30,000 yield) W1332A
• HP Black Contract Original Laser Imaging Drum (30,000 yield) W1332AC

(Black declared yields based on ISO/IEC 19752 and continuous printing. Actual yields vary considerably based on images printed and other factors. For details see http://www.hp.com/go/learnaboutsupplies. Pages may vary based on customer printing conditions and usage.)
(Approximate yield. Actual yields vary considerably based on images printed and other factors. For details see http://www.hp.com/go/learnaboutsupplies. Pages may vary based on customer printing conditions and usage.)Software includedCommon Installer, V3 Print Driver with Lite SM, TWAIN/WIA Driver, HP MFP Scan, HP Scan to PC LiteManufacturer WarrantyOne-year, on-site limited warranty; Standard Office Hours support; Standard Office Days a week phone support
